Concept Development

From Idea to Final Product
At Soltech, we specialize in concept development — transforming your initial ideas or identified needs into fully realized products. Our process covers every stage: early concept sketches, detailed design, and prototyping, all the way to a finished and market-ready solution.

By combining creativity, engineering expertise, and hands-on experience, we ensure that every concept is developed with functionality, manufacturability, and compliance in mind. Whether you bring us a rough idea or a specific challenge, we guide you through the entire journey from concept to final product.

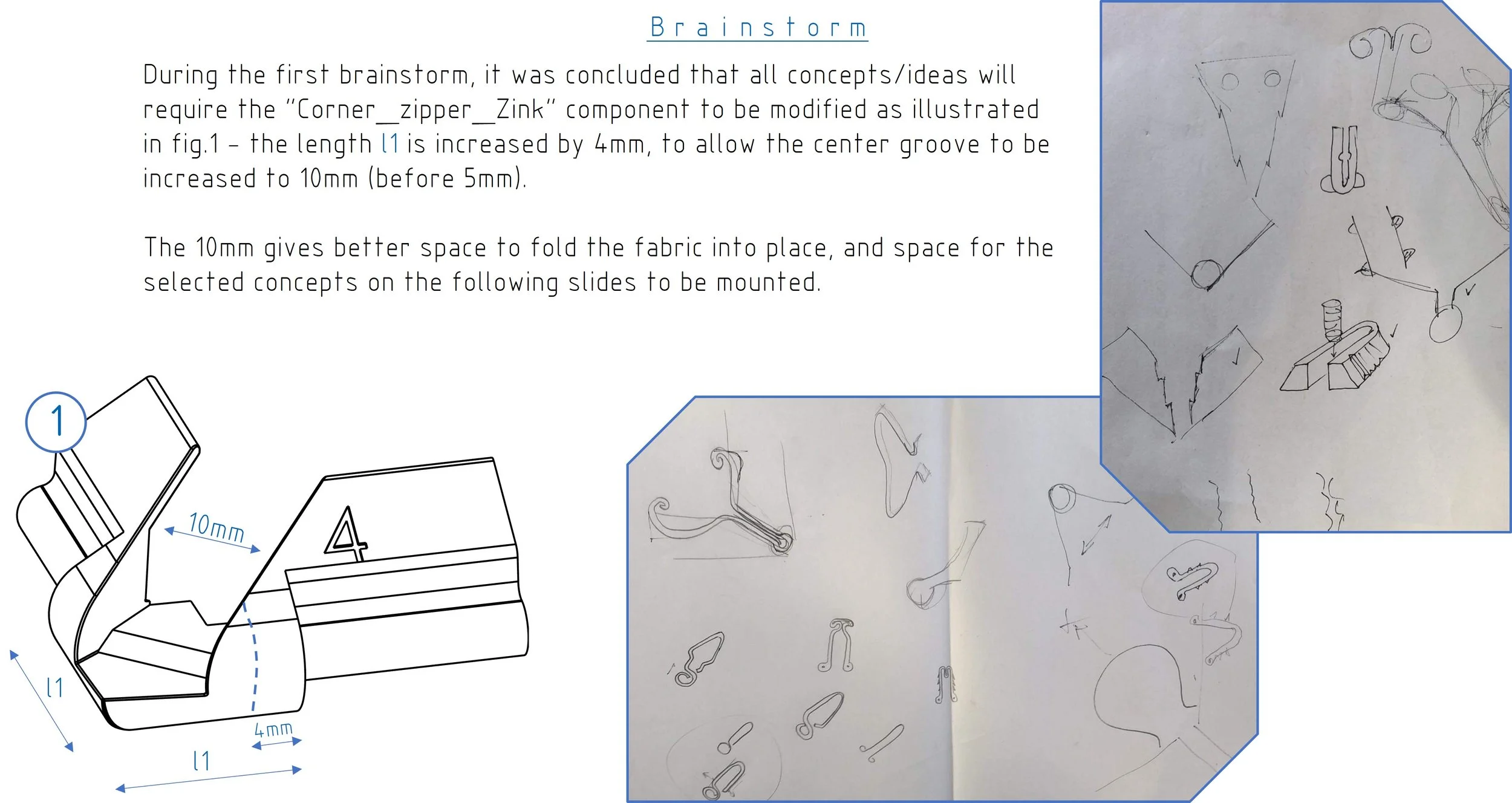

  • Technical drawing and sketches of a zipper component with annotations, including dimensions of 10mm and 4mm, and hand-drawn concept sketches on paper for a project brainstorm.

    Initial brainstorm

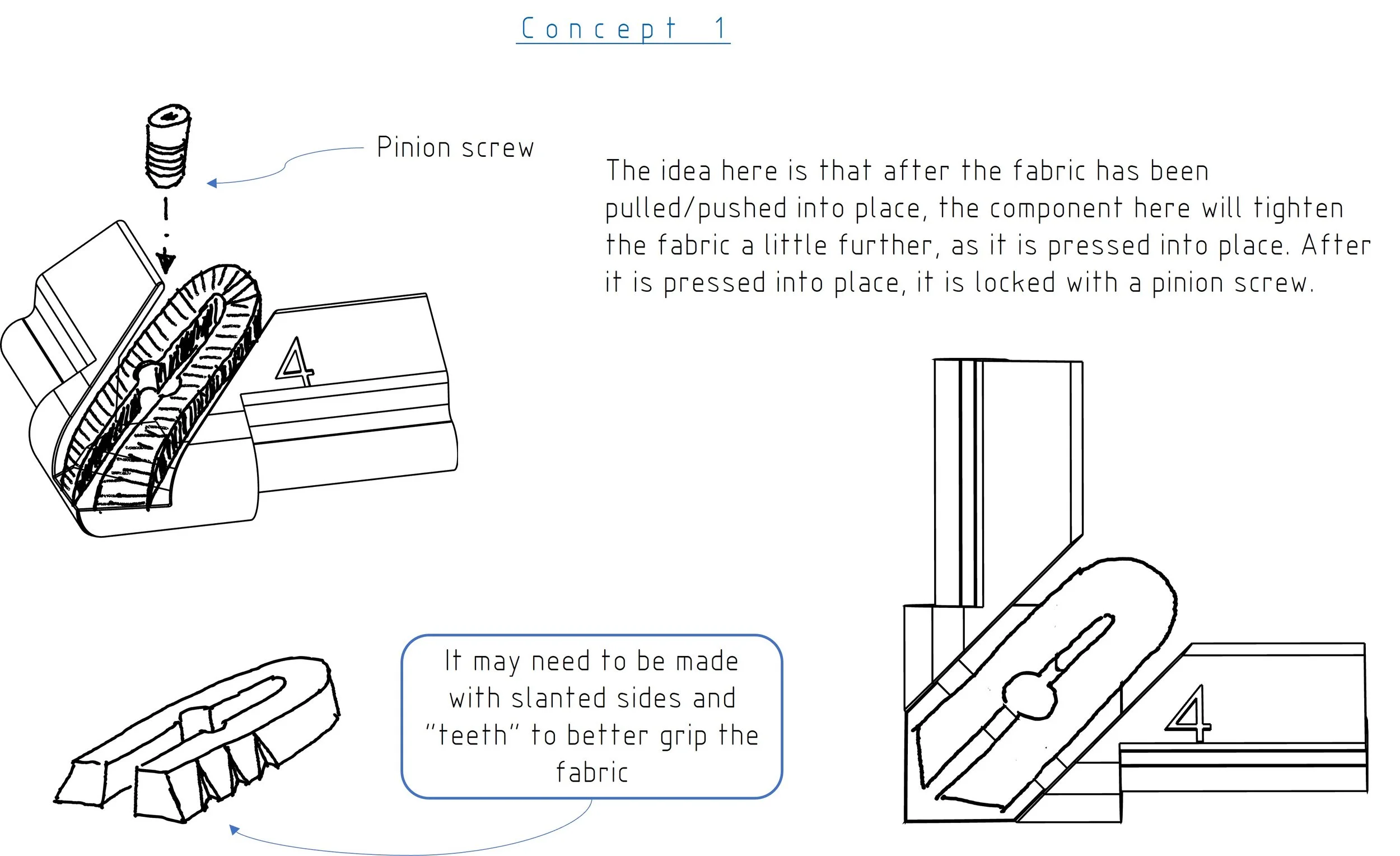

  • Diagram of a sewing pinion screw mechanism with text explaining that pressing the fabric into place and locking with the pinion screw tightens the fabric, with additional notes about making slanted sides and teeth for better grip.

    Concept one

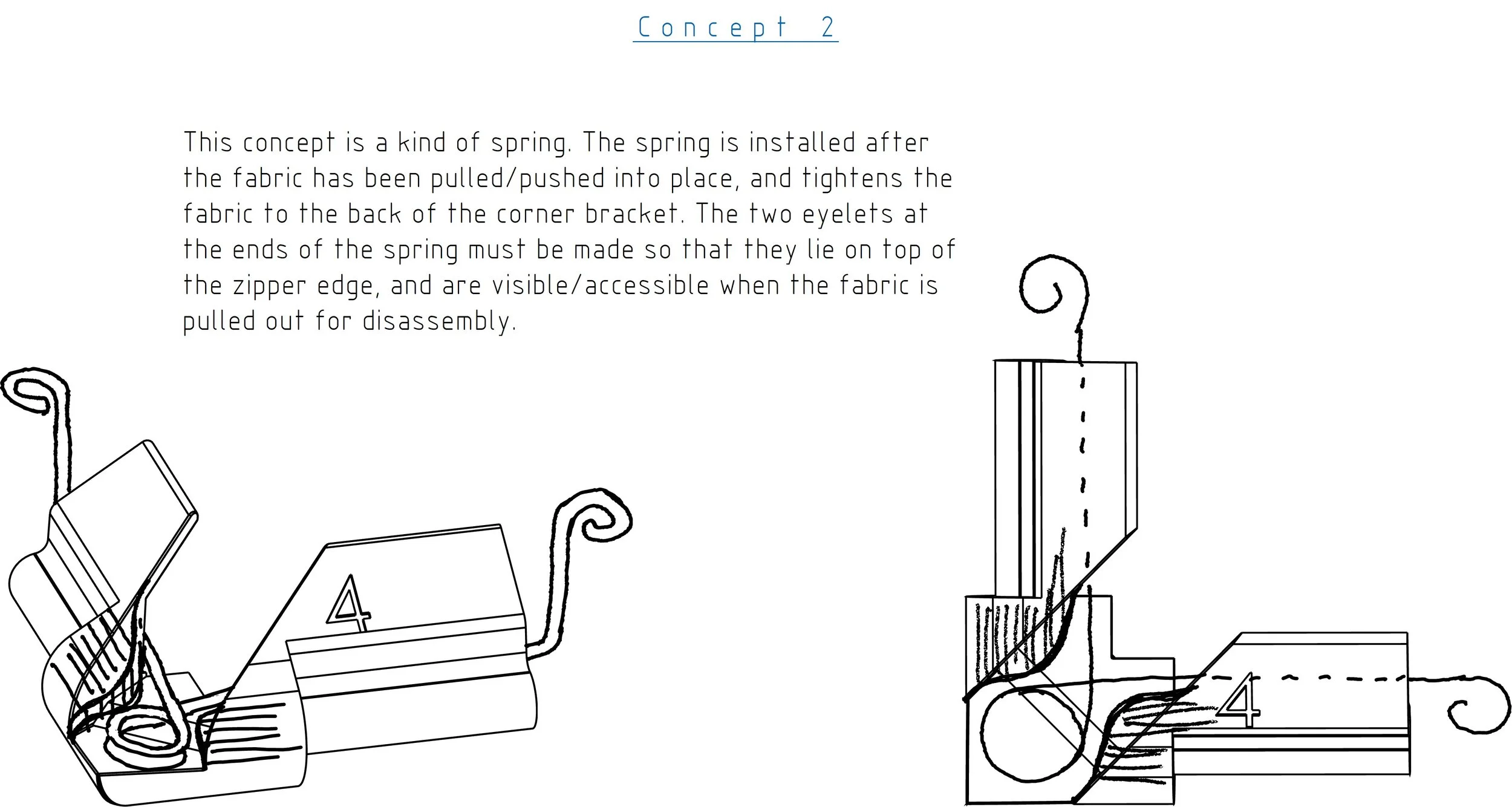

  • Line drawing of a spring mechanism with fabric, showing two side views. One on the left depicts the fabric pulled into place with the spring installed behind the fabric. The right view illustrates the spring's attachment to a corner bracket, with details on how the eyelets at the spring ends must lie on top of the zipper edge for disassembly.

    Concept two

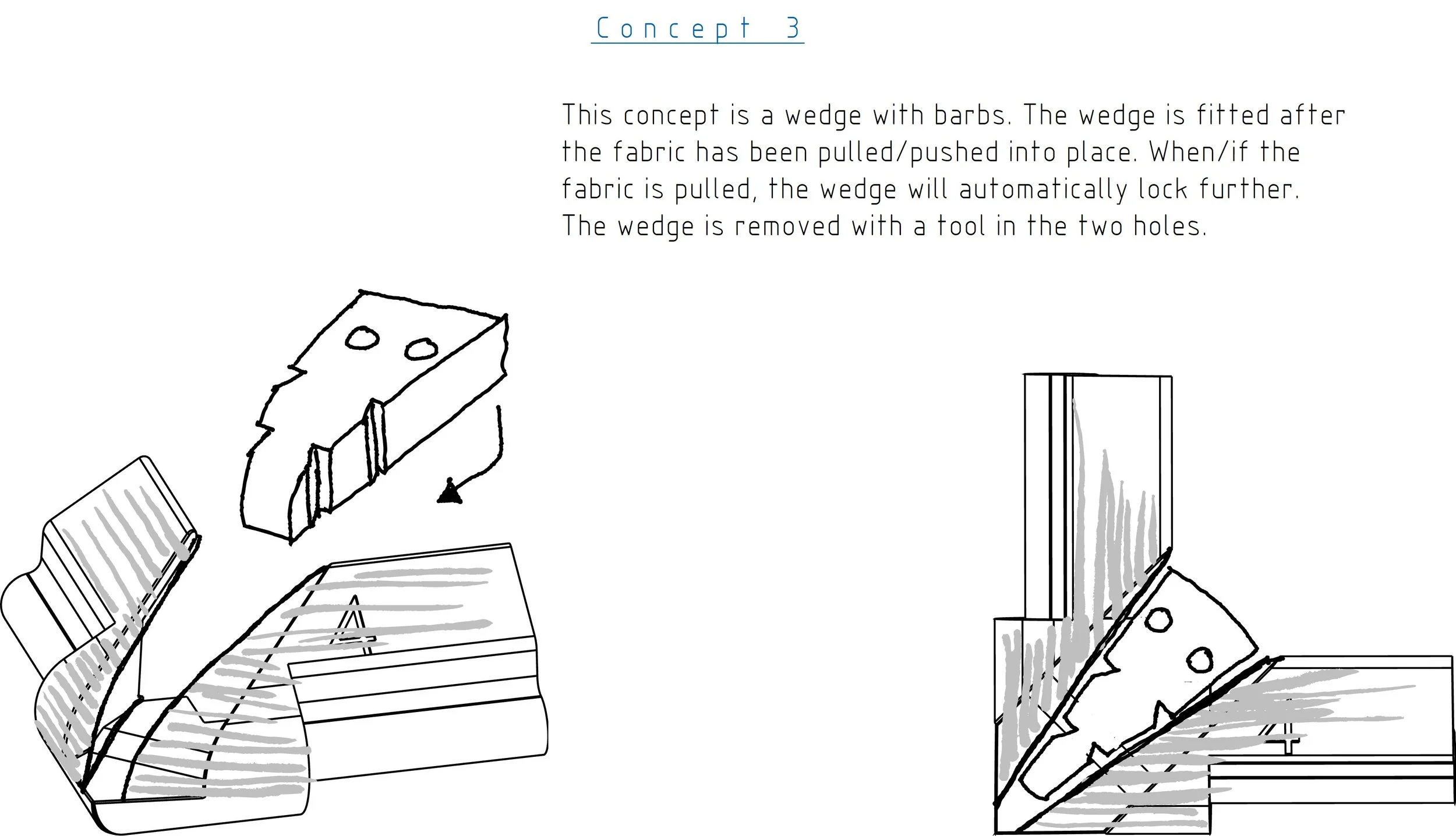

  • Diagram of a wedge with bars, showing how it is fitted into fabric, with a tool for removal.

    Concept three

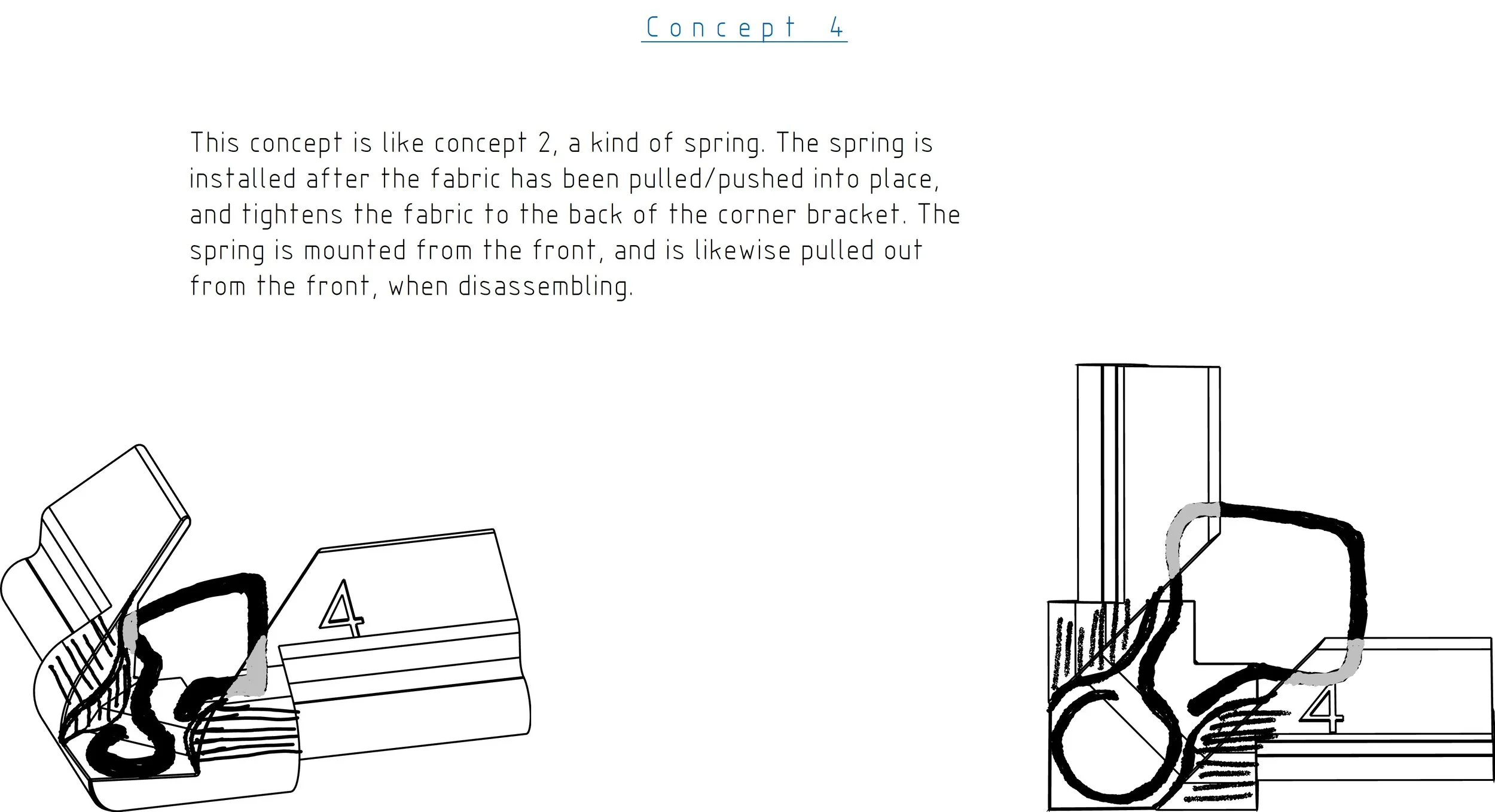

  • Black and white technical drawing of a spring mechanism with labeled parts, illustrating its assembly process.

    Concept four

Mechanical engineering
